I.   Introduction

Concurrency bugs are common in modern kernels due to the pervasive adoption of efficient but difficult-to-reason parallelization techniques. The consequence of kernel concurrency bugs is disastrous. They crash the entire system, breaking availability ^[16],[57] or causing data loss ^[48]. Even worse, attackers exploit concurrency bugs to mount a privilege escalation attack. These threats are becoming more serious in recent years, as the number of concurrency bugs has been steadily increasing in Linux kernels ^[26], and a recent study ^[38] demonstrates that a user-level attacker reliably exploits concurrency bugs. Furthermore, we observe that many zero-day attacks in Linux kernels ^{[21],[23],[31],[32],[39]} use concurrency bugs by exploiting malicious thread interleavings.

However, discovering kernel concurrency bugs is much more difficult than finding non-concurrency bugs. In contrast to non-concurrency bugs which are discovered by sequential testing of single-thread execution, kernel concurrency bugs are typically caused by the concurrent execution of two or more threads. Kernel concurrency bugs only emerge in a particular pattern of interleavings between threads, which happens only when a certain timing condition is met. Therefore, to discover kernel concurrency bugs, a fuzzer must consider two aspects: how to explore execution paths (i.e. , sequential aspects), and how to navigate thread interleavings (i.e. , concurrent aspects).

For decades, coverage-guided fuzzing has been extensively studied to effectively explore the search space of execution paths ^{[8],[11],[20],[22],[35],[36],[70],[75],[89]}. However, little progress has been made in exploring thread interleavings. Specifically, little is known about how to define the coverage metric for thread interleavings (shortly, interleaving coverage metric), and how to utilize interleaving coverage metric in exploring thread interleavings. For example, Razzer ^[28] and Snowboard ^[17] use their own heuristics combined by static or dynamic analysis, but they are coverage-oblivious. They cannot prune redundant executions of thread interleavings that produce identical coverage. KRACE ^[88] proposes alias coverage, which tracks concurrently-executed two instructions, but alias coverage suffers from effectively summarizing the behavior of concurrency bugs. This is because most concurrency bugs are caused by interleavings of more instructions ^[49]. Furthermore, KRACE randomly schedules instructions during runtime without considering what thread interleavings are explored before.

To overcome the shortcoming of existing techniques, this paper proposes SegFuzz, a fuzzing framework for kernel concurrency bugs. At its core, SegFuzz aims to systematically explore the vast search space of thread interleavings to quickly identify interleavings leading to concurrency bugs. The central idea behind SegFuzz is i) defining a new, effective interleaving coverage metric that reflects the common nature of concurrency bugs, and ii) using that metric to drive an efficient search strategy for discovering previously untested thread interleavings. Hence, we demonstrate that SegFuzz significantly saves CPU costs in kernel fuzzing by finding concurrent bugs quickly. SegFuzz achieves the goal with the following two key ideas: segmentizing thread interleaving and the mutation-based thread interleaving exploration.

Segmentizing thread interleaving

The key idea is built upon the discovery in the previous study ^[49] which highlights that most concurrency bugs occur when at most four memory accesses referring to shared memory objects are interleaved. Based on this finding, SegFuzz decomposes the large thread interleaving space into tractable small sub-spaces, called interleaving segment. The number of instructions in an interleaving segment is small (at most four by default), and each interleaving segment represents an interleaving of those instructions.

Using interleaving segments, we propose novel interleaving coverage metric, interleaving segment coverage , which is defined as a set of detected interleaving segments. Using interleaving segment coverage provides two benefits to fuzzers. First, a fuzzer can consider interactions of multiple instructions, which increases accuracy of discovering concurrency bugs in comparison to previous approaches ^[30],[88]. Second, a fuzzer can test the unexplored thread interleavings guided by interleaving segment coverage while avoiding redundant testing.

Mutation-based thread interleavings exploration

To effectively test unexplored thread interleavings, SegFuzz proposes a mutation approach on observed interleaving segments that are recorded in interleaving segment coverage. This is achieved by changing the interleaving orders of instructions in each segment. This approach allows SegFuzz to proactively infer which instruction orders are possible before running them, enabling it to determine the next interleavings to be tested. Furthermore, SegFuzz mutates as many segments as possible to generate unexplored thread interleavings from the mutated segments, which helps to navigate the search space of thread interleavings more quickly

We implement SegFuzz across various software layers. We run SegFuzz against the latest version of the Linux kernel (ranging from 5.19-rc2 to 6.2), and find new 21 concurrency bugs all of which exhibits harmful behaviors such as memory corruption, task hangs, or assertion violations. We emphasize that all concurrency bugs found by SegFuzz were lurking in subsystems where Syzkaller ^[20] has been testing for several years, which demonstrates the usefulness of SegFuzz in discovering concurrency bugs. To quantify the efficiency of SegFuzz, we experimentally compare SegFuzz against the state-of-the-art techniques, Snowboard and KRACE, and demonstrate that SegFuzz discovers concurrency bugs more quickly (4.1× on average) than previous works.

We describe our contributions in three folds:

• Interleaving segment coverage: Based on the idea of segmentizing thread interleaving, we propose interleaving segment coverage, which encodes interleavings of multiple instructions, and provides solid clues for a fuzzer to track the progress of exploring thread interleavings.
• Mutation-based interleaving exploration: Unlike the random or simple heuristic exploration of thread interleavings (as in most previous approaches), we propose the mutation-based interleaving exploration, which strategically and quickly explores the search space of thread interleavings.
• Practical impact: We discovered new 21 harmful concurrency bugs in recent Linux kernels, which have been extensively tested before, demonstrating the practicality of SegFuzz.

II.   Background

A. (Conventional) Kernel Fuzzing

Throughout decades, a number of fuzzing approaches ^{[20],[22],[33],[35],[36],[68],[75],[89]} have been proposed to discover vulnerabilities in the kernel. These approaches, specifically coverage-guided fuzzing, execute a large number of random inputs (i.e. , sequences of system calls) while a code coverage metric (e.g. , branch coverage) tracks the execution path that each input explores. Although conventional fuzzing techniques have proven useful in large system software, they primarily focus on the sequential aspect of execution, which relates to the execution path of a single thread and do not adequately consider the concurrent aspect, which involves thread interleaving among threads. As a consequence, conventional fuzzing is limited in discovering concurrency bugs such as race conditions, data races, and deadlocks ^[12],[77].

B. Concurrency Fuzzing

Recently, several approaches ^{[10],[17],[28],[30],[88]} have been proposed to consider both sequential and concurrent aspects of the kernel execution into fuzzing. Concurrency fuzzers repeatedly execute a multi-thread input (e.g. , a multi-threaded system call sequence) while controlling thread scheduling and tracking unique behaviors of thread interleavings.

Thread interleaving exploration

Unlike conventional fuzzers, concurrency fuzzers consider thread interleaving is another input domain that a fuzzer needs to explore. To explore diverse thread interleavings, concurrency fuzzers adopt various thread interleaving exploration schemes. For instance, at every iteration, Razzer ^[28] and Snowboard ^[17] selects a single pair of instructions, and determines and enforces their execution order. Whereas, KRACE ^[88] randomly schedules instructions, and Conzzer ^[30] designates two functions and run them concurrently. During runtime, concurrency fuzzing overrides the kernel’s scheduler, and controls thread scheduling as desired.

Interleaving coverage metric

As KRACE ^[88] reveals, code coverage metrics (e.g. , branch coverage) are not enough to capture unique behaviors of thread interleavings, because code coverage metrics only track behaviors in a single thread without paying attention to thread interleavings. To capture unique behaviors of thread interleavings, a few concurrency fuzzers ^[30],[88] come up with interleaving coverage metrics, which track the execution order of concurrent events between threads, ranging from a finer-granularity (e.g. , instruction ^[88]) to a coarser-granularity (e.g. , function ^[30]). Concurrency fuzzers utilize interleaving coverage when determining if thread interleavings of a multi-thread input needs to be further tested.

III.   Motivation

We first study how concurrency bugs manifest depending on thread interleaving through a real-world bug example. Then, we identify design objectives to discover kernel concurrency bugs efficiently and discuss limitations in prior work.

Manifestation of concurrency bugs. In Figure 1, an uninitialized access bug may manifest when two system calls are executed concurrently: sendmsg(), and setsockopt(). Let us assume inet->hdrincl is initially 1. During the execution of sendmsg(), thread A reads a value of inet->hdrincl twice at A2 and A4, which may be intervened in the middle by another thread (i.e. , thread B). In that case, if B1 is executed between A2 and A4, thread A reads different values of inet->hdrincl at A2 and A4, causing uninitialized access to rfv (e.g. , A5).

Fig. 1:Fig. 1: Simplified code snippet of CVE-2017-17712. If B1 is executed between A2 and A4, concurrent accesses on inet->hdrincl leads to uninitialized stack pointer usage on rfv, and an attacker may gain root privileges through a dedicated attack technique ^[47].

Observation 1: Interleaving of multiple memory accesses. This example demonstrates that a specific interleaving of multiple instructions is necessary to cause a concurrency bug. In the example of Figure 1, three memory accesses are interleaved, which eventually causes the uninitialized access bug. First, A2 should be executed before B1 (i.e. , A2 B1¹) to make thread A not initialize rfv. Second, B1 ⇒ should be executed before A4 (i.e. , B1 ⇒ A4) to make thread A dereference uninitialized rfv while other memory accesses do not contribute to the bug. Therefore, to trigger the kernel concurrency bug, a fuzzer must consider interleavings of the three memory accesses, e.g. , (A2 ⇒ B1 ⇒ A4).

Design goal 1: Informative interleaving coverage. The observation gives an insight of how to define interleaving coverage metric. When discovering the uninitialized access bug, an interleaving coverage metric should distinguish different interleavings of multiple memory accesses. For example, (B1 ⇒ A2 ⇒ A4) (i.e. , Figure 2-(a)) and (A2 ⇒ B1 ⇒ A4) (i.e. , Figure 2-(b)) should be distinguished, and thus, interleaving coverage should not be saturated until (A2 ⇒ B1 ⇒ A4) is executed. Otherwise, a fuzzer may think that there is no more interesting thread interleaving in the multi-thread input after it executes Figure 2-(a), and stop searching for new interleavings in the input, missing the opportunity to find the concurrency bug. However, it is crucial that how many instructions the coverage metric consider to distinguish different interleavings. If interleaving coverage metric tracks interleavings of too few instructions (e.g. , 2), it may miss interleavings that should be tested. On the other hand, tracking interleavings of too many instructions (e.g. , thousands) cause high search complexity due to its large coverage space. Therefore, this work seeks a balancing point in the bug-finding capability and the search complexity when defining an interleaving coverage metric.

Observation 2: Feedback from explored executions. We find that even if an explored execution does not cause a concurrency bug, it provides useful feedback to guide what interleavings should be further explored. In the example of Figure 1, let us assume a fuzzer executes the two system calls sequentially such that thread B executes all instructions followed by the execution of thread A (i.e. , Figure 2-(a)). In the explored execution, a fuzzer observes the three instructions, B1, A2, and A4, are executed in the order of (B1 ⇒ A2 ⇒ A4) and they access the same memory object (i.e. , inet->hdrincl). From this execution, one can easily imagine a new interleaving of these three instructions by changing the execution order of B1 and A2, resulting in Figure 2-(b). The speculative interleaving is what exactly we are looking for; it is the offending interleaving causing the uninitialized access bug, e.g. , (A2 ⇒ B1 ⇒ A4), and, if executed, the interleaving triggers the bug.

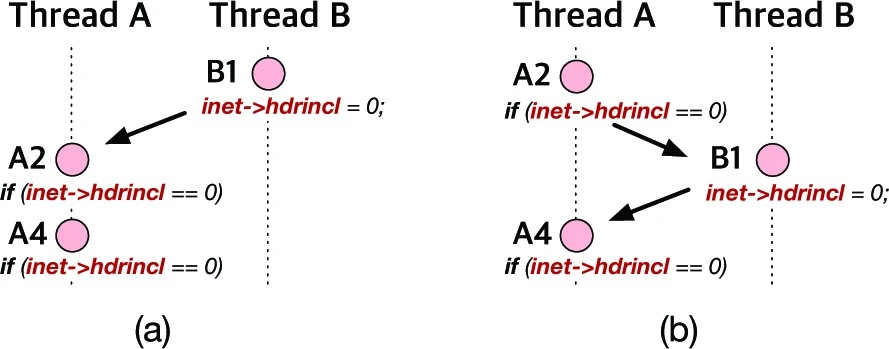

Fig. 2:Fig. 2: Two thread interleavings between thread A and thread B described in Figure 1. The uninitialized access bug manifests only in (b). We omit bug-irrelevant memory accesses (i.e. , A6 and B2).

Design goal 2: Speculative interleaving exploration. The observation gives a direction that how a fuzzer should explore the search space using a coverage metric. If interleaving coverage tracks that (B1 ⇒ A2 ⇒ A4) is explored before, a fuzzer can utilize interleaving coverage as feedback to infer unexplored thread interleavings (e.g. , A2 ⇒ B1 ⇒ A4). This allows a systematic way to explore the search space rather than performing randomized or heuristic-based exploration pervasively used in previous approaches ^{[7],[10],[14],[88]}. Considering concurrency bugs often manifest with a thread interleaving that rarely happen ^[38], the systematic interleaving exploration boosts up the concurrency bug discovery, as a fuzzer directly executes unexplored thread interleavings instead of executing random interleavings thousands of times.

A. Limitation of prior approaches

Although prior approaches achieve their own successes, we find that their interleaving coverage metrics and interleaving exploration methods do not satisfy Design goal 1 and 2.

Less informative interleaving coverage. We find that previously proposed interleaving coverage metrics are limited in distinguishing two interleavings in Figure 2. Thus, they do not satisfy Design goal 1. For example, let us suppose we adopt alias coverage ^[88], which tracks interleaving orders of two instructions. Alias coverage determines an interleaved execution X exposes a new behavior if X contains an unexplored directed-instruction pair I_W → I_R , where I_R reads a value written by I_W . Assuming Figure 2-(a) is executed first, alias coverage identifies Figure 2-(a) exposes new behaviors when it sees two unexplored directed-instruction pair: (B1 → A2) and (B1 → A4). However, according to alias coverage, Figure 2-(b), which causes the uninitialized access bug, does not exhibit any new coverage because (B1 → A4) is already explored in Figure 2-(a). Therefore, alias coverage may make the wrong decision about whether a fuzzer needs to run these two system calls more, misleading a fuzzer to de-prioritize a multi-thread input in which a concurrency bug resides. In evaluation, we quantify the limitation in Table III. Likewise, concurrent call pair coverage ^[30] also suffers from distinguishing these two thread interleavings; These two interleavings take place in the same functions (i.e. , raw_sendmsg() and do_ip_setsockopt() ), while concurrent call pair tracks a concurrently-executed function pair without being aware of fine-grained interleavings of instructions within functions.

Ineffective interleaving exploration. Stemming from the aforementioned limitations in coverage, existing thread interleaving exploration methods do not efficiently explore the search space of thread interleaving. Specifically, Razzer ^[28] and Snowboard ^[17] are coverage-oblivious. They do not make use of any interleaving coverage and perform their heuristic-based interleaving exploration. KRACE ^[88] randomly schedules instructions at every iteration without considering what thread interleavings are explored before. KRACE utilizes its own interleaving coverage only when deciding whether it runs a given multi-thread input more. Whereas Conzzer ^[30] designates two functions and run them concurrently, but it still leaves instructions’ interleaving uncontrolled and scheduled randomly. In summary, existing approaches do not systematically search for thread interleavings, and execute redundant thread interleavings.

IV.   Exploring Thread Interleaving Space

This work focuses on how to efficiently explore the vast search space of thread interleavings when a multi-thread input (e.g. , sendmsg() and setsockopt() in Figure 1) is given. Our approach utilizes an explored thread interleaving as a seed interleaving (e.g. , Figure 3-(a)). With the seed interleaving, a fuzzer explores thread interleavings (e.g. , Figure 6-(c)) of the given input in the following three steps:

1. Decomposing the explored thread interleaving into segments containing a small number of instructions.
2. Mutating interleavings within segments to generate unexplored interleavings for each segment.
3. Recomposing mutated segments into whole interleaving to determine how to schedule instructions in future.

In this section, we first explain our key intuition behind decomposing explored interleavings into interleaving segments (§IV-A). Then, we propose a novel interleaving coverage metric based on decomposed interleaving segments (i.e., step 1 ) to satisfy Design goal 1 (§IV-B). Lastly, we explain how to mutate (i.e., step 2 ) and recompose (i.e., step 3 ) interleaving segments to explore thread interleavings to satisfy Design goal 2 (§IV-C).

A. Key Idea: Segmentizing thread interleaving

When fuzzing concurrency bugs with an interleaving coverage metric, the fundamental challenge is the large search space, because testing multiple memory accesses increases the search space exponentially. Therefore, this work seeks to strike the balance in the trade-off between the bug-finding capability and the search complexity.

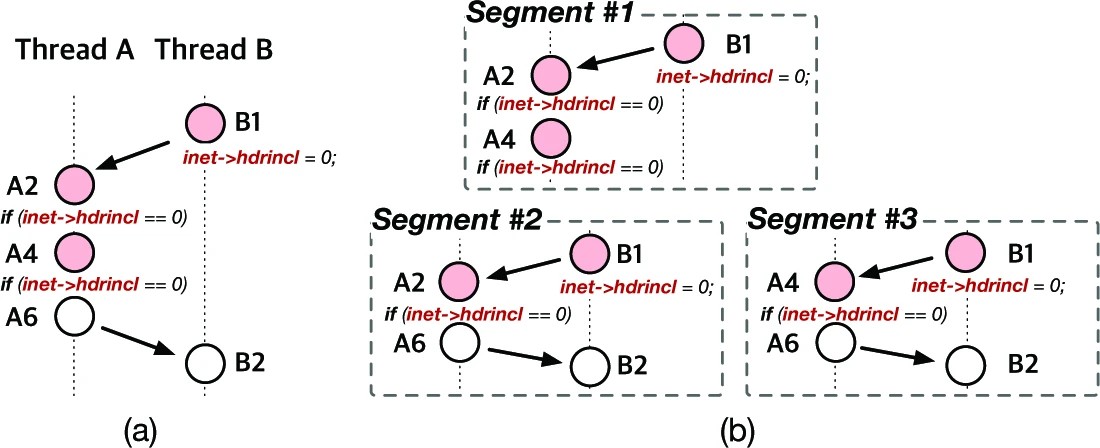

Fig. 3:Fig. 3: (a) A thread interleaving example of Figure 1, and (b) interleaving segments contained in (a). Note that red circles correspond to instructions involved in triggering the uninitialized access bug.

Segmentizing thread interleaving. To reduce the search complexity, we take the classical wisdom of problem decomposition, where the complexity of a problem exponentially decreases as the problem size decreases. Our key strategy is decomposing the search space into small sub-spaces, called interleaving segments. Interleaving segments represent interleavings of a small number of instructions accessing shared memory objects. To define the size (i.e. , the number of instructions) of an interleaving segment, we use the observation from an extensive survey ^[49] in which 92.4% (97 out of 105) of concurrency bugs manifest due to the execution order of at most four memory accesses referring to shared memory objects. We confirm that the observation is still valid in recent Linux kernels. We collect 15 recent patches to fix kernel concurrency bugs, and check how many memory accesses are involved when triggering concurrency bugs fixed by these patches. Unsurprisingly, 14 concurrency bugs among them were caused by at most four memory accesses, while only 6 were caused by at most two memory accesses.

This finding implies that all other memory accesses beyond four accesses and their execution orders do not meaningfully affect manifestation of a concurrency bug. It is also applied to the example of Figure 1. The uninitialized access bug is triggered by the execution order of three memory accesses (e.g. , A2, A4 and B1), while others (e.g. , A6 and B2) are irrelevant to the manifestation of the concurrency bug. Following the observation, we confine the size of an interleaving segment to contain at most four memory-accessing instructions, which makes the problem of defining a coverage metric tractable while maintaining a strong bug-finding capability.

Example of interleaving segments. Figure 3 illustrates interleaving segments from the single execution of two system calls, where the execution scenario is represented in Figure 3-(a). Then, interleaving segments described in Figure 3-(b) represent a part of its thread interleaving, comprised by at most four instructions. For example, Segment #1 represents an interleaving of three instructions B1, A2, and A4, stating that B1 is executed before A2 and A4. Similarly, Segment #2 and Segment #3 describe interleavings of (B1, A2, A6, and B2), and (B1, A4, A6, and B2) respectively. How to build segments is described in §IV-B.

Benefits of segmentizing thread interleaving. Segmentizing thread interleavings provides two benefits to a fuzzer. First, when defining an interleaving coverage metric, tracking explored interleavings in each segment gives a befitting guidance to determine whether a fuzzer further explores thread interleavings or not. Because most concurrency bugs manifest depending on interleavings of at most four memory accesses, if a fuzzer explores all possible interleavings for each detected segment, it is unlikely that a fuzzer misses a concurrency bug. Accordingly, interleavings in each segment can act as an interleaving coverage metric, satisfying Design goal 1 .

Second, explored interleaving segments can be used to systematically search for interleavings in next iterations. Since each interleaving segment contains only a small number of memory accesses, a fuzzer can speculatively creates new interleavings from explored interleavings. Taking an example of Segment #1 in Figure 3, besides execution order (B1 ⇒ A2 ⇒ A4) (represented in Segment #1), a fuzzer easily rearranges the three instructions to speculate unexplored execution orders of these instructions such as (A2 ⇒ B1 ⇒ A4) which causes the uninitialized access bug if executed. Therefore, instead of doing a randomized search (as in most prior approaches), if a fuzzer figures out which of the enumerated interleavings have not been explored, a fuzzer can strategically explore the search space with speculative interleavings, satisfying Design goal 2 .

B. Interleaving Segment Coverage

As discussed, we decompose explored thread interleavings into interleaving segments. We first represent an explored thread interleaving as a directed acyclic graph (DAG). Then, we compute subgraphs of the DAG called segment graphs , each of which represents an interleaving segment. Using a set of segment graphs, we propose a novel interleaving coverage metric called interleaving segment coverage. Interleaving segment coverage is a collection of explored segment graphs, designed to track interleavings within interleaving segments.

Graph representation of thread interleaving. In the representation of DAG, a vertex represents a memory-accessing instruction, and an edge represents an execution ordering between two memory-accessing instructions. There are two types of edges, program-order edges and interleaving-order edges. A program-order edge indicates an execution order between two memory-accessing instruction in a single thread. Whereas, an interleaving-order edge indicates the execution order between two memory-accessing instructions that 1) access the same shared data, 2) at least one of them is a write operation, and 3) are executed by different threads.

Generating segment graphs. Figure 4 illustrates how a fuzzer computes segment graphs from the execution example of Figure 3-(a). First, the given thread interleaving is represented as a DAG. Given that the execution in Figure 3-(a) involves five memory accesses, a fuzzer generates five vertices, each of which corresponds to a memory-accessing instruction as shown in Figure 4-(a). Between these vertices, a fuzzer generates edges to represent execution orderings. Specifically, program-order edges represented as dotted edges (e.g. , (A2 ⇒ A4)) are drawn to represent orderings in a single thread, such as "A2 is executed before A4 in thread A". Similarly, a fuzzer generates interleaving-order edges represented as solid edges, expressing interleaving orders between threads. For example, (B1 ⇒ A2) represents interleaving between B1 and A2 that access the same memory object (i.e. , inet->hdrincl). As a result, a fuzzer constructs a DAG to describe the whole thread interleaving. We provide an algorithm of the above process in Appendix A1.

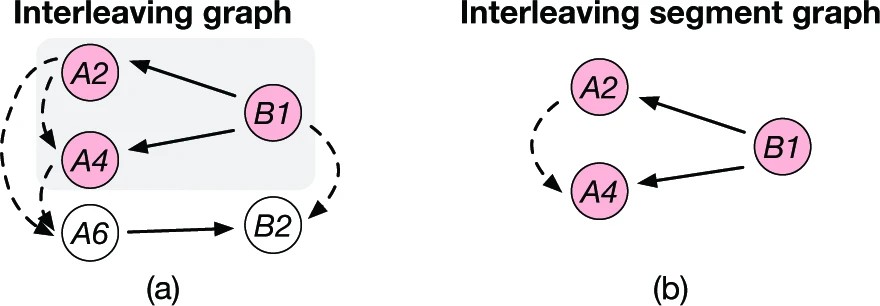

Fig. 4:Fig. 4: (a) Graph representation of Figure 3-(a), and (b) segment graph corresponding to Segment #1 in Figure 3-(b) (extracted from the gray part of (a)). In each graph, dotted arrows represent program-order edges, and solid arrows represent interleaving-order edges.

Afterwards, a fuzzer derives subgraphs, called segment graphs , from the generated DAG, each of which includes at most four vertices, which reflects the finding in the previous survey ^[49], To compute a segment graph g , a fuzzer selects two interleaving-order edges and vertices connected by these two edges. In the example, assume a fuzzer selects (B1⇒A2) and (B1⇒A4) from Figure 4-(a). As three vertices A2, A4, and B1 are connected by these two edges, a segment graph g contains the three vertices. Then, a fuzzer extracts all edges that connect these vertices (i.e. , the two interleaving-order edges and remaining (A2 ⇒ A4)), and adds the edges into g , resulting in Figure 4-(b). A detailed algorithm is given in Appendix A2.

Lastly, a fuzzer gathers segment graphs into a set G = {g ₁, g ₂, …, g_n} (e.g. , in Figure 3, three segment graphs corresponding to Segment #1, #2, and #3), and uses G to track interleaving segment coverage and to search unexplored thread interleavings.

Tracking interleaving segment coverage. Our interleaving coverage called interleaving segment coverage tracks segment graphs. When a new segment graph is detected, it is added to interleaving segment coverage. If new segment graphs are continuously discovered in a multi-thread input, it indicates that a fuzzer should invest more computing power to further explore thread interleavings in the input. Otherwise, a fuzzer can conclude that the input no longer reveals interesting inter-leavings. In practice, however, interleaving segment coverage contains a large number of segment graphs, which consumes a large amount of memory even though the size of individual segment graphs is small. To reduce memory consumption, we hash each segment graph, so interleaving segment coverage is stored as a universal hash table of segment graphs. We adopt Merkel hashing ^[25],[51]. The key property of Merkel hashing is reflecting directions of edges, so that a fuzzer can distinguish different interleavings of the same vertices. For example, four segment graphs described in Figure 5 are hashed into different values. Due to space constraints, we present how our graph hashing works in distinguishing different interleavings of Figure 5 in Appendix B.

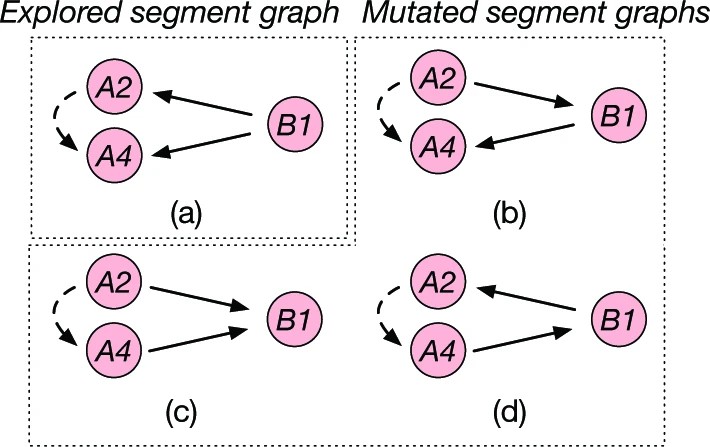

Fig. 5:Fig. 5: Example of interleaving segment mutation. In this example, (a) represents an interleaving segment graph of Figure 4 while (b) and (c) represent valid mutated segments of (a). Whereas (d) is an invalid mutated segment of (a) because it contains a loop.

C. Mutation-based Interleaving Exploration

To explore the interleaving search space, we use detected segment graphs. Specifically, a fuzzer mutates explored interleaving segments into unexplored interleaving segments, where mutated segments contain new interleavings to be tested. Afterwards, a fuzzer recomposes mutated segments to obtain a speculative interleaving, and generates scheduling points from the recomposed interleaving.

Mutating interleaving segment. Suppose a set of explored segment graphs G = {g ₁, g ₂, …, g_n } (e.g. , segment graphs corresponding to Figure 3-(b)) is given. For each g_i ∈ G , a fuzzer mutates g_i by flipping the directions of its interleaving-order edges, which implies changing the interleaving order of an instruction pair that access the same memory object. Figure 5 illustrates how a fuzzer mutates a segment graph. Given an explored segment graph described in Figure 5-(a), flipping (B1 ⇒ A2) produces a segment graph described in Figure 5-(b). Likewise, flipping both (B1 ⇒ A2) and (B1 ⇒ A4) in Figure 5-(a) generates a different segment graph of Figure 5-(c), which also represents another interleaving. Note that flipping only (B1 ⇒ A4) of Figure 5-(a), however, generates an invalid segment graph as shown in Figure 5-(d) because it creates a loop B1 ⇒ A2 ⇒ A4 ⇒ B1. When a mutated segment graph contains a loop, a fuzzer discards the segment. Note that a fuzzer drops a mutated segment graph if it is already explored, eliminating redundant executions. A fuzzer identifies such case when the hash value of a newly mutated segment graph is recorded in interleaving segment coverage. In such a way, a fuzzer forms a set of unexplored mutated segment graphs G_mutated (e.g. , in Figure 3, mutated segment graphs derived from Segment #1, #2, and #3), and recomposes them for the next search.

Recomposing mutated segment graphs. One could take up a single mutated segment graph in G_mutated for the next search. However, it might require many search iterations because the size of G_mutated could be large. Instead, we select multiple mutated segment graphs, and recompose them to form a large graph to test multiple mutated segments at one execution.

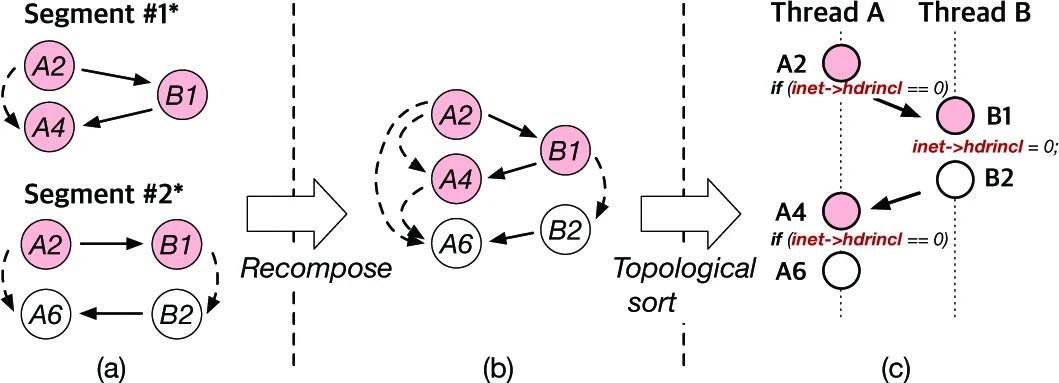

Fig. 6:Fig. 6: Example of recomposing mutated segment graphs into a speculative thread interleaving, where (a) represents mutated segment graphs, (b) represents a graph combining the two mutated segment graphs, and (c) represents an instruction sequence to test Segment #1* and #2*

Figure 6 demonstrates a sketch of recomposing steps. Suppose, from G_mutated , we select two mutated segment graphs called Segment #1* and #2* (i.e. , Figure 6-(a)), which are derived from Segment #1 and #2 in Figure 3-(b) respectively. We can then merge the two segment graphs, resulting in a larger graph containing all vertices and all edges from Segment #1* and #2* as described in Figure 6-(b). This large graph describes all interleavings from selected mutated segment graphs, and later, is used to schedule instructions to test both Segment #1* and #2* at once (i.e. , Figure 6-(c)).

When recomposing mutated segment graphs, one important constraint is that a loop should not be formed (i.e. , Figure 6-(b) should not contain a loop). To select multiple mutated segment graphs without making a loop, a fuzzer starts with an empty set of $G_{mutated{\text{ }}}^{\ast}$. Then, a fuzzer iterates over all mutated segment graphs g ∈ G_mutated . From g , a fuzzer tries to add edges in g into $G_{mutated{\text{ }}}^{\ast}$ one by one and check it causes a loop or not. If it does not form a loop, a fuzzer adds the segment graph g into $G_{mutated{\text{ }}}^{\ast}$. After iterating all mutated segment graphs in G_mutated , a fuzzer obtains $G_{mutated{\text{ }}}^{\ast}$ which is a subset of G_mutated without containing a loop. Then, a fuzzer excludes selected mutated segment graphs from the set of all mutated segment graphs (i.e. , ${G_{mutated{\text{ }}}} = {G_{mutated{\text{ }}}}\backslash G_{mutated{\text{ }}}^{\ast}$), and generates scheduling points to test mutated\ interleaving segments contained in $G_{mutated{\text{ }}}^{\ast}$. We show this process in Algorithm 3 in Appendix A3.

Generating scheduling points. As a final step, once $G_{mutated{\text{ }}}^{\ast}$ (i.e. , Figure 6-(b)) is obtained, a fuzzer creates scheduling points, where each scheduling point describes an instruction on which preemption should happen (including the end of each system call) as well as the next thread to run. A fuzzer generates scheduling points by conducting a topological sort ^[34] to $G_{mutated{\text{ }}}^{\ast}$, which generates an instruction sequence. Figure 6-(c) shows the result of conducting the topological sort to Figure 6-(b). As shown in the figure, the resulting instruction sequence can be used to test merged mutated segments, i.e. , Segment #1* and #2*. In this instruction sequence, a fuzzer selects scheduling points as A2, B2 and A6, and uses scheduling points when enforcing thread scheduling as detailed in §V-C.

V.   Design of SegFuzz

SegFuzz is a kernel concurrency fuzzer adopting interleaving segment coverage (§IV-B) and the mutation-based interleaving exploration (§IV-C). As shown in Figure 7, SegFuzz consists of two stages of fuzzing. The first stage is a single-thread fuzzing , which searches for execution paths using branch coverage, and the second stage is a multi-thread fuzzing to explore thread interleavings using interleaving segment coverage. In both stages, SegFuzz traces timestamp-annotated memory accesses executed by each system call, and the second stage adopts a mechanism to control thread scheduling.

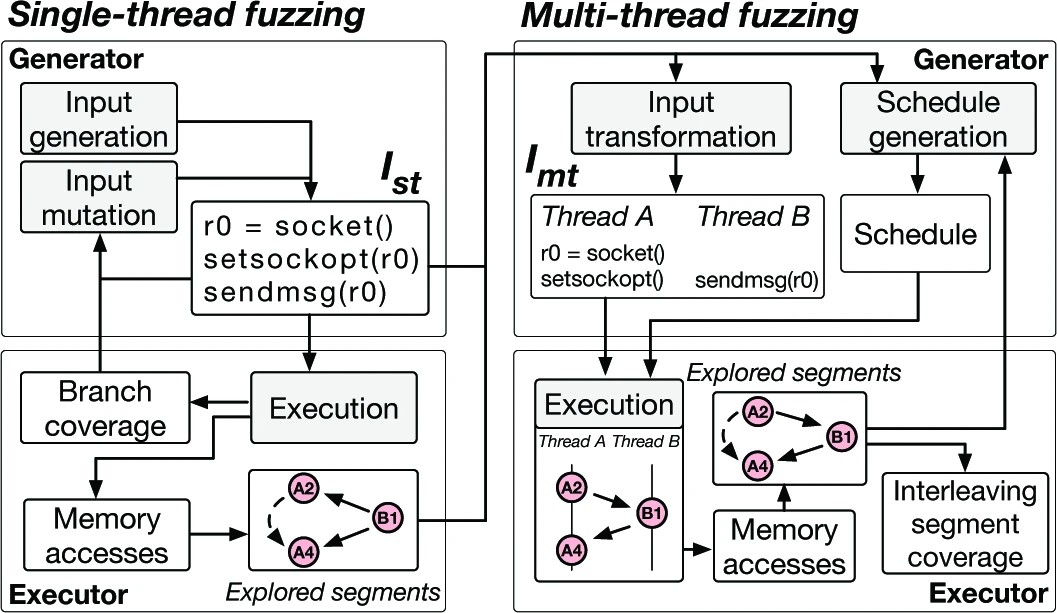

Fig. 7:Fig. 7: An overview of SegFuzz’s architecture.

In the following, we provide the overall design of SegFuzz (§V-A). Then, we describe the kernel instrumentation (§V-B) to trace timestamp-annotated memory accesses, and the execution engine (§V-C) to control thread scheduling. Lastly, we explain the implementation detail of SegFuzz (§V-D).

A. Two-stage Fuzzing

SegFuzz’s single-thread fuzzing (§V-A1) and multi-thread fuzzing (§V-A2) consist of two components, an input generator and an input executor. We explain each details in the following.

1) Single-thread fuzzing

In a single-thread fuzzing stage, the single-thread generator produces a single-thread input (referred as I_ST ) in the form of a sequence of random system calls, (S ₁, S ₂, …, S_n ). And then, the single-thread executor runs I_ST to identify two system calls in I_ST that potentially exhibit new interleaving segment coverage. If identified, I_ST will be passed to the next stage, the multi-thread fuzzing.

Single-thread generator. Similar with a conventional fuzzing, the single-thread generator constructs a single-threaded input I_ST with two strategies, generation and mutation. When using the generation strategy, SegFuzz randomly generates a system call sequence based on well-formed system call description grammar Syzlang ^[18], which describes templates of available system calls including types of arguments, a range of feasible values of each argument, and the type of a return value. With Syzlang, SegFuzz produces a single-thread input by repeatedly selecting a random system call and providing reasonable arguments of the system call. The mutation strategy is an alternative of the generation strategy. When using a mutation strategy, SegFuzz picks up an already-generated single-thread input, and modifies the single-thread input by appending additional system calls, removing existing system calls, or changing values of arguments of existing system calls.

Single-thread executor. Given I_ST from the single-thread generator, the single-thread executor runs I_ST while tracing basic blocks and timestamp-annotated memory accesses executed by each system call. After the execution is finished, the single-thread executor computes branch coverage, and if I_ST exposes new branch coverage that has not been explored, SegFuzz keeps I_ST , and feeds it back to the single-thread generator so that the single-thread generator further mutates I_ST to find more branch coverage.

Moreover, the single-thread executor identifies a pair of system calls in I_ST that potentially exposes new interleaving segment coverage if executed concurrently. Specifically, for each system call pair (S_i, S_j ) in I_ST , the single-thread executor computes a set of explored segment graphs G with memory accessed executed by S_i and S_j (as described in §IV-B), and checks if G contains new segment graphs that have not been explored. If so, the single thread executor passes I_ST as well as (S_i, S_j ) and G to the multi-thread fuzzing. The multi-thread fuzzing will split I_ST into two system call sequences with the purpose of running S_i and S_j concurrently.

CVE-2017-17712 in single-thread fuzzing. To discover CVE-2017-17712 demonstrated in Figure 1, let us assume the single-thread generator produces I_ST as a sequence of three system calls r∅ = socket(), setsocktopt(r∅), sendmsg(r∅) as described in Figure 7. Then, the single-thread executor runs this I_ST , and collects memory accesses executed by two system calls setsockopt(r∅) and sendmsg(r∅). Since these memory accesses are annotated with timestamps, the single-thread executor identifies that all memory accesses executed by setsockopt(r∅) are followed by memory accesses executed by sendmsg(r∅), and computes a set of segment graphs G , which includes (B1 ⇒ A2 ⇒ A4) (i.e. , Figure 2-(a)). Assuming (B1 ⇒ A2 ⇒ A4) has been unseen before, SegFuzz determines that it is worth exploring interleavings between the two system calls. Thus, the single-thread executor passes I_ST as well as the two system calls and G to the next stage.

2) Multi-thread fuzzing

After I_ST is passed with (S_i, S_j ) and G , the multi-thread generator transforms I_ST to a multi-thread input I_MT . In addition, the multi-thread generator produces schedules , according to the mutation-based interleaving exploration (§IV-C). The multi-thread executor then tests each schedule of I_MT with a support of the execution engine (§V-C), and collects interleaving segment coverage (§IV-B).

Multi-thread generator. Given I_ST and (S_i, S_j ), the multi-thread generator first produces I_MT , which preserves all system calls in I_ST , but executes S_i and S_j concurrently. Specifically, assuming i < j , the multi-thread generator splits I_ST , which is a single sequcne of system calls (S ₁, S ₂, …, S_i,…, S_j,…, S _n−1, S_n ), into two sequences of system calls, (S ₁, S ₂, …, S_i ) and (S _i+1, …S_j,…, S_n ). Then, the multi-thread executor runs the two system call sequences in two different threads, while runs S_i and S_j concurrently. A detailed example is provided in Appendix C.

Also, the multi-thread generator repeatedly produces various schedules. To generate schedules, the multi-thread generator implements the mutation-based interleaving exploration method detailed in §IV-C. Briefly explaining, given a set of explored segment graphs G , the multi-thread generator mutates segment graphs in G to derive a set of unexplored mutated segment graphs G_mutated , and then selects a subset of G_mutated called $G_{mutated}^{\ast}$ to generate a schedule. The multi-thread executor then runs I_MT while enforcing the generated schedule.

Multi-thread executor. The multi-thread executor runs I_MT while enforcing a schedule generated by the multi-thread generator. During the execution of I_MT , the multi-thread executor checks if the running thread interleaving causes a harmful behavior (e.g. , memory corruption or deadlock) with a support from devloper tools such as lockdep ^[44], kernel watchdog ^[46], and sanitizers ^{[24],[41],[45],[73]}. If these developer tools detect that an abnormal behavior occurs in the kernel, the multi-thread executor writes a report of the abnormal behavior as well as I_MT and the executed thread interleaving.

Otherwise, with memory accesses executed by S_i and S_j , the multi-thread executor computes a set of executed segment graphs G^′ , and probes for interleaving segment coverage as described in §IV-B. In addition, the multi-thread executor feeds G^′ to the multi-thread generator, allowing the multi-thread generator to further explore thread interleavings.

CVE-2017-17712 in multi-thread fuzzing. Once receiving I_ST , the multi-thread generator transforms I_ST into I_MT . In this example, thread A executes two system calls, r∅ = socket and setsockopt(r∅), and thread B executes one system call sendmsg(r∅), while two system calls setsockopt(r∅) and sendmsg(r∅) will be executed concurrently (as described as I_MT in Figure 7). Furthermore, the multi-thread generator produces a schedule according to the mutation-basd interleaving exploration. Given G including (B1 ⇒ A2 ⇒ A4), the multi-thread generator produces a mutated segment graph corresponding to (A2 ⇒ B2 ⇒ A4) (refer Figure 5). Then, the multi-thread generator generates a schedule to test (A2 ⇒ B1 ⇒ A4) (refer Figure 6). Lastly, when the multi-thread executor runs I_MT with the generated schedule, the uninitialized access bug is triggered.

B. Kernel Instrumentation

SegFuzz requires to trace basic blocks (for computing code coverage) and timestamp-annotated memory accesses (for computing interleaving coverage) executed by each system call. For this, SegFuzz incorporates a compiler pass that inserts callback function calls 1) at the entry of each basic block, and 2) before each instruction that accesses globally-visible memory objects. At the entry of a basic block, the callback function records the starting address of the basic block into a per-thread memory region, which is shared between the user space and the kernel space through mmap. Thus after a thread executes a system call, the thread can identify executed basic blocks by reading the memory region. Similar to the case of basic block, at instructions that access globally-visible memory objects, the callback function records five tuples (i.e. , the address of the memory object, the instruction address, the size and the type of the memory access, and the timestamp) into another per-thread memory region, allowing a thread to identifying memory accesses executed by a system call.

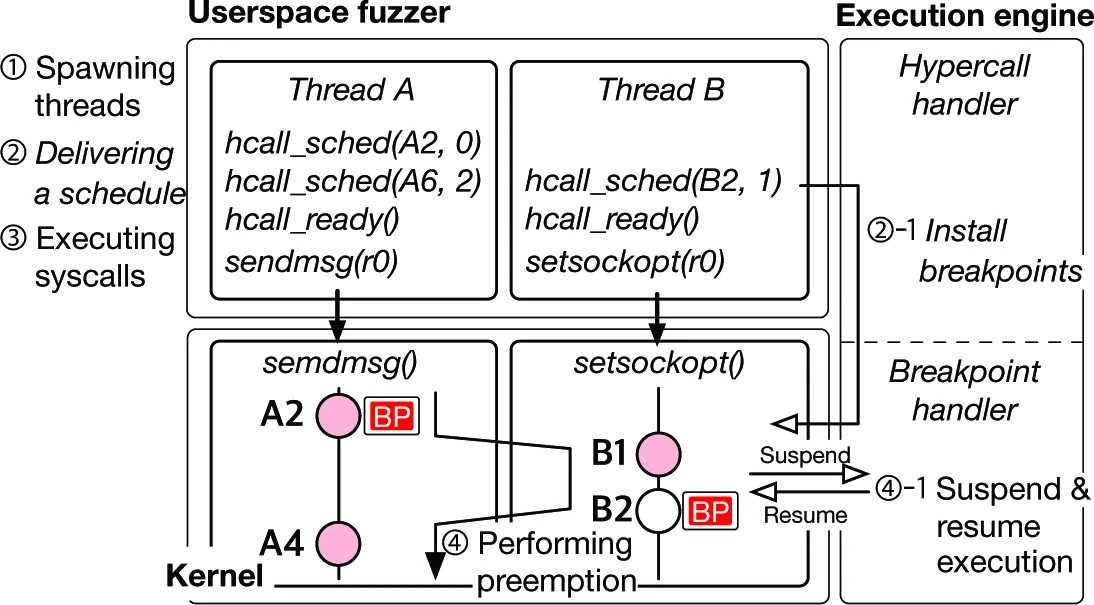

Fig. 8:Fig. 8: The workflow of the execution engine.

C. Execution Engine

The execution engine grants an ability to the fuzzer process that it can control thread scheduling. It is implemented in the hypervisor layer to be non-intrusive to the kernel execution.

Enforcing a schedule. To request the execution engine to enforce a schedule, the fuzzer process sends a schedule through hypercall interfaces before executing system calls. During the execution, the execution engine suspends and resumes the execution of system calls as described in the given schedule.

Figure 8 shows a workflow of the execution engine. At the beginning, the fuzzer process spawns threads, where each thread is assigned a system call and scheduling points (① in Figure 8). Then, each thread invokes hypercalls (i.e. , hcall_-sched()) to deliver scheduling points to the execution engine (②). When the execution engine receives a scheduling point, the execution engine installs a breakpoint on an instruction on which the scheduling point refers (②-1). It is worth noting that hcall_sched() takes the order of scheduling points as a second paramter. In this example, preemption will occur first on A2, followed by B2 and A6 in order during the execution. After delivering scheduling points, each thread calls hcall_ready(), which sleeps until all threads call are ready, and after all threads call hcall_ready(), the execution engine wakes them up, and the threads start executing system calls (③). While executing system calls, the execution engine keeps only one thread to run. When the running thread reaches a scheduling point, the execution engine performs preemption (④) by suspending the running thread and resuming the next thread to run as specified in the given schedule (④-1).

Performing preemption In order to perform preemption, SegFuzz leverages the hardware breakpoint feature ^[27] shipped in modern Intel CPU chipsets. During the execution, the execution engine recognizes that the execution reaches a scheduling point when a breakpoint is hit. When a thread hits a breakpoint, the execution engine stores context information (e.g. , register values) of the running thread in the hypervisor’s memory, and changes the program counter of the thread to an infinite loop called a trampoline. In the trampoline, the thread keeps calling a kernel API cond_resched() which yields a CPU. As a consequence, the thread is suspended in the trampoline without making a progress. To resume the suspended thread, the execution engine restores registers including a program counter with the values stored when the thread was suspended, and then the thread can continue its execution.

Restriction of hardware breakpoint. While SegFuzz often needs more than four scheduling points, the number of hardware breakpoints that can be installed simultaneously is limited (e.g. , four in Intel CPU chipsets). SegFuzz overcomes this restriction by leveraging the fact that scheduling points are ordered. Specifically, the execution engine installs breakpoints on first four scheduling points, and when an installed breakpoint is hit, the execution engine moves a breakpoint onto the next scheduling point.

Handling missing scheduling points. During the execution, instructions on which scheduling points install might not be executed, for example, if the control flow changes due to kernel internal states. In such case, the execution engine does not mess up the order of scheduling points. For example, when executing a schedule of Figure 8, it is possible that thread A may skip A2, and hit a breakpoint installed on A6. If so, the execution engine ignores all scheduling points before A6 (i.e. , A2 and B2), and keeps enforcing a schedule after A6.

Virtual Machine Instrospection (VMI). The execution engine introspects the target kernel for two reasons. First, because a breakpoint does not distinguish which thread hits the breakpoint, the execution engine needs to determine whether the breakpoint is hit by a thread of the fuzzer process, or by an irrelevant thread. Second, when a running thread tries to acquire a lock, the execution engine inspects whether the lock has been held by a suspended thread, which may cause the unexpected block. While the VMI is crucial to properly control thread scheduling, we leave details of our VMI in Appendix D.

D. Implementation

We implement SegFuzz in various software layers as follows: The SegFuzz’s two-stage fuzzing (§V-A) is implemented based on Syzkaller ^[20], with 3334 ² LoC in GoLang and 341 LoC in C++. The kernel instrumentation (§V-B) is implemented in two parts, a compiler pass and callback functions. The compiler pass is implemented on the LLVM compiler suite 12.0.1 ^[69] with 323 LoC in C++, and, the callback functions are implemented in the Linux kernel source tree with 265 LoC in C. Lastly, the execution engine (§V-C) is implemented on QEMU 6.0.0 with 1662 LoC in C, and leverages KVM (Kernel-based Virtual Machine) to take advantage of hardware acceleration. We have open-sourced the implementation of SegFuzz in https://github.com/casys-kaist/segfuzz.

VI.   Evaluation

We demonstrate the usefulness of SegFuzz by 1) providing newly found concurrency bugs in the recent Linux kernels (§VI-A), 2) quantitatively comparing SegFuzz against prior concurrency fuzzing techniques (§VI-B), and 3) analyzing performance characteristics of SegFuzz (§VI-C).

A. Finding Real-world Concurrency Bugs

Experimental setup

We run SegFuzz on a two-socket machine equipped with Intel(R) Xeon(R) CPU E5-2683 v4 @ 2.10GHz (32 physical cores) and 512 GB of RAM. We run Ubuntu Server 20.04.4 LTS on Linux 5.4.143 as a host operating system. During our experiments, we launch 32 virtual machines (VMs) where each VM is equipped with four vCPUs and 8 GB memory. We use a Linux kernel configuration used by Syzkaller ^[20] so that Syzkaller and SegFuzz search the same kernel modules/subsystems. The kernel versions we run on SegFuzz ranges from 5.19-rc2 to 6.2.

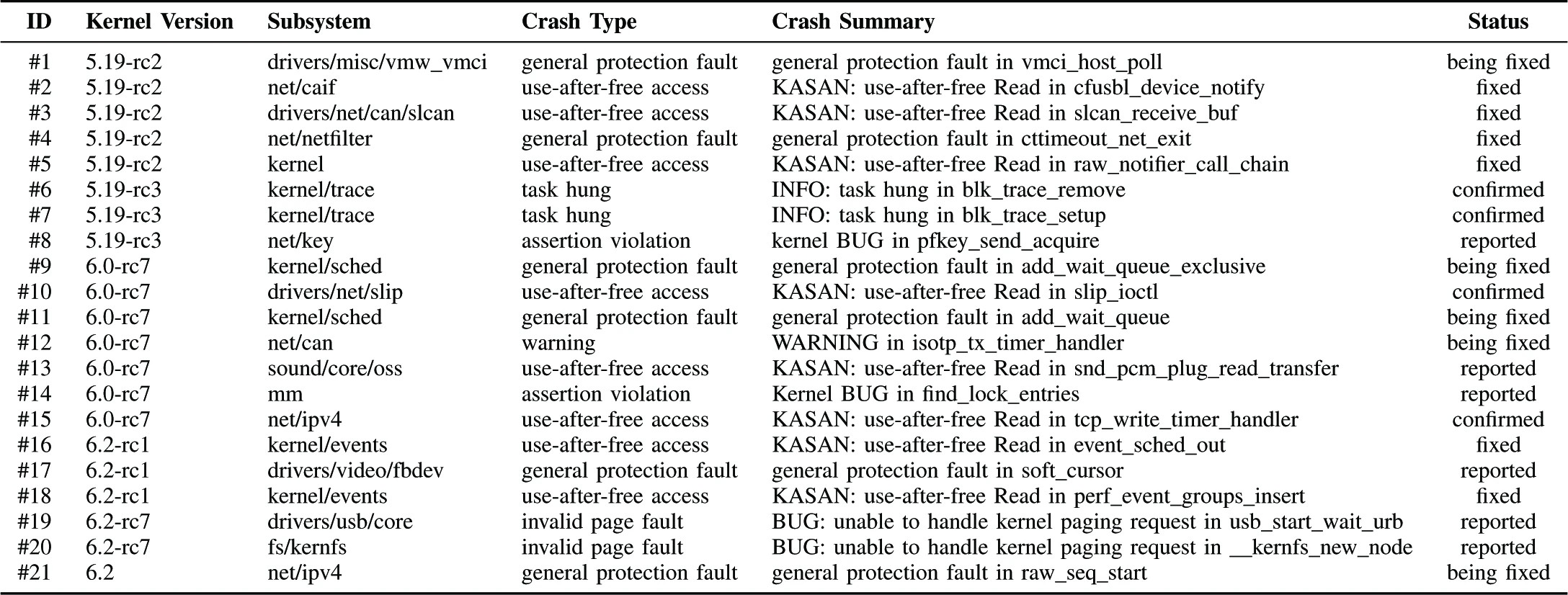

Newly found concurrency bugs. During our evaluation period, SegFuzz discovers 83 unique crash titles including ones that Syzkaller also finds. Among them, 21 are newly identified as harmful concurrency bugs, and three (i.e. , #2, #3, and #5) were reported by Syzkaller after few month later. The result is summarized in Table I. This result shows that SegFuzz is able to find bugs across the entire kernel layers from specific device drivers (e.g. , #1, and #3) to various network subsystems (e.g. , #8, #12, and #21). Unlike KRACE, which focuses on kernel file systems, SegFuzz is not tailored to specific subsystems. SegFuzz discovers not only less-harmful bugs such as warnings (e.g. , #12) but also critical bugs such as memory corruptions (e.g. , #2, #10, and #13). Interestingly, based on the root cause confirmation by kernel developers, we find that some bugs has been in the kernel for a long time, but are never identified by other fuzzing systems. #10 (i.e. , KASAN: use-after-free Read in slip_ioctl) was present in the kernel since 2013, and #11 (i.e. , general protection fault in add_wait_queue) was present since 2011. These cases demonstrate that SegFuzz is capable of discovering hard-to-find concurrency bugs.

B. Comparison with prior approaches

We compare SegFuzz against prior approaches to answer the following questions: 1) is interleaving segment coverage (§IV-B) informative and helpful in discovering concurrency bugs? (Design goal 1 in §III) (§VI-B1), and 2) how efficient is the mutation-based interleaving exploration (§IV-C) in exploring the search space of thread interleavings? (Design goal 2 ) (§VI-B2). To evaluate the points, we collect well-known concurrency bugs as a test set, and then compare SegFuzz and prior approaches on the test set.

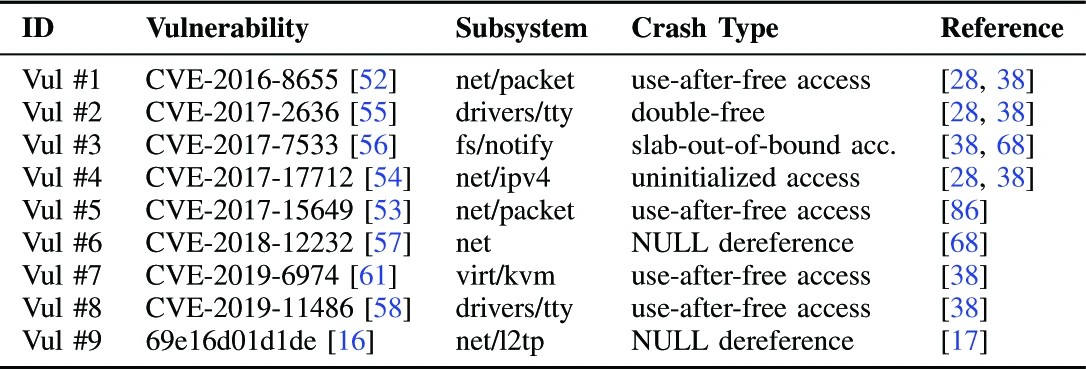

Bug selection. Table II shows concurrency bugs for the comparison study. Our concurrency bug selection criteria are 1) concurrency bugs are studied in previous studies ^{[17],[28],[38],[68],[86],} and 2) we can find patches fixing concurrency bugs so that we can inject them into a kernel. We exclude two Android-specific concurrency bugs (i.e. , CVE-2019-1999 ^[59] and CVE-2019-2025 ^[60]) evaluated in ExpRace ^[38]. To run tests on a consistent environment, we use the same kernel of version v6.0-rc7 and make the bugs available by rolling back patches that addressed concurrency bugs.

Comparison method. We measure the number of executions and the elapsed time required to discover each concurrency bug. However, these metrics heavily depend on initial seeds and the process of mutating multi-threaded input seeds, which may vary across evaluations and disturb a fair fuzzing evaluation ^[37]. To confine such noisy randomness, we manually provide a multi-threaded input as well as a pair of system calls that triggers each concurrency bug. Therefore, we evenly compare how accurately and quickly fuzzers can discover concurrency bugs when the same bug-triggering inputs are given. We limit the number of executions to 10000 for each measurement, which is large enough for our evaluation.

1) Comparison of interleaving coverage metrics

We implement a different coverage metric in SegFuzz and compare the version with SegFuzz using interleaving segment coverage.

Comparison target. We choose alias coverage as a comparison target since it is an interleaving coverage metric most relevant to interleaving segment coverage (i.e. , both describe interleavings of instructions). However, alias coverage is implemented only for file systems, so we emulate alias coverage in SegFuzz by limiting the number of vertices of each segment graph to two. Hence, like alias coverage, interleaving segments of size 2 contains a single interleaving between two instructions where at least one of them is a write instruction. Using the emulated alias coverage, we run SegFuzz to see whether each concurrency bug is triggered until the emulated alias coverage is saturated.

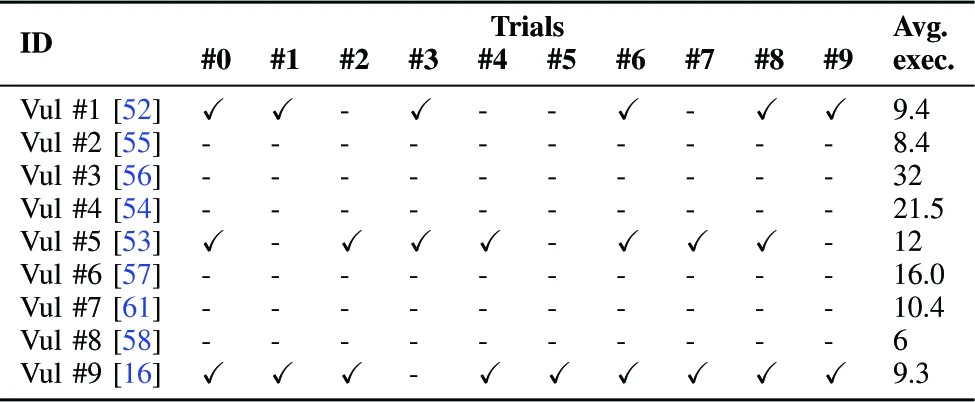

Result. Table III shows the result. When using emulated alias coverage, many (six ouf of nine) concurrency bugs are not discovered even if emulated alias coverage is completely saturated. Whereas using interleaving segment coverage, SegFuzz can discover all listed concurrency bugs before the saturation of interleaving segment coverage in every trial. The example of CVE-2017-17712 described in §III (i.e. , Figure 1) explains why such results come out; emulated alias coverage considers only interleavings between two instructions, which is not sufficient to execute the offending interleaving containing multiple instructions. We manually identify that all listed concurrency bugs are caused by thread interleavings of three or four instructions, which supports our design choice on the size of interleaving segments (§IV-A). On the other hand, alias coverage is saturated quickly. With our mutation-based interleaving exploration, it is saturated after 13.9 executions on average, ranging from 6 to 32.

Bug-finding capability and search complexity trade-off The result indicates the trade-off between the bug-finding capability and the search complexity; Alias coverage shows the lower search complexity while it also shows the weaker bug-finding capability. Whereas, interleaving segment coverage shows the stronger bug-finding capability but it sets the larger search space than the alias coverage, causing higher search complexity. Nevertheless, we claim that its search complexity is still tractable to perform the mutation-based interleaving exploration, and we validate our claim in the next evaluation (§VI-B2).

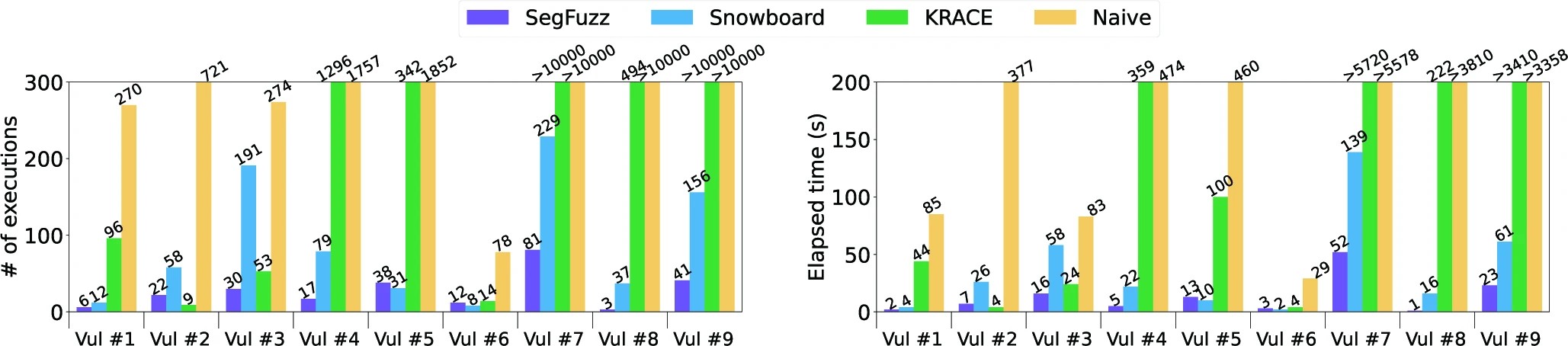

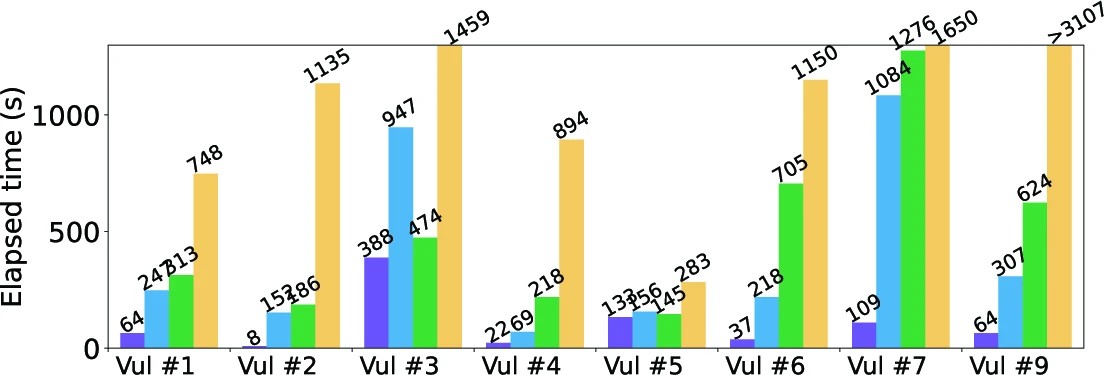

Fig. 9:Fig. 9: The number of executions and the elapsed time (secs) required for each fuzzer to discover given concurrency bugs. The Naive column indicates the kernel’s scheduler (i.e. , no thread scheduling control applied).

2) Efficiency of mutation-based interleaving exploration

One could argue that even if interleaving segment coverage is informative to describe offending thread interleavings, its search space is too large to explore. However, it is tractable to run the mutation-based interleaving exploration using interleaving segment coverage. To demonstrate this, we compare the mutation-based interleaving exploration (§IV-C) against various interleaving exploration methods proposed in prior approaches.

Comparison target. We compare SegFuzz to state-of-the-art kernel concurrency fuzzers, Snowboard ^[17], and KRACE ^[88]. Unfortunately, we cannot directly run Snowboard and KRACE for the comparison study; KRACE is implemented only for file systems, and Snowboard runs based on the binary translation (i.e. , TCG) of QEMU without utilizing the hardware acceleration (i.e. , KVM), and thus, its original implementation is not suitable for the elapsed time comparison with SegFuzz. Therefore, we implement their approaches on the multi-thread fuzzing phase (§V-A2) of SegFuzz by applying 1) the random delay injection scheme of KRACE, and 2) the enforcing-single-interleaving-order scheme used by Snowboard. In addition to them, we also compare with the kernel scheduler (i.e. , no thread scheduling control applied) as the naive baseline.

Discovering concurrency bugs. Figure 9 shows the comparison result when discovering concurrency bugs. In these figures, SegFuzz, Snowboard, and KRACE display the number of executions and the elapsed time taken and Naive corresponds to the kernel scheduler without any thread scheduling control enabled. In Naive, we identify the difficulty of discovering varies from a bug to a bug. For example, CVE-2018-12232 appears as the easiest concurrency bug to discover since it can be discovered within 78 executions even with the naive kernel scheduler. On the other hand, the kernel scheduler fails to discover three concurrency bugs, CVE-2019-6974, CVE-2019-11486, and 69e16d01d1de within 10K times of executions. Regardless of the varying difficulty, SegFuzz can discover all of concurrency bugs within a short time. SegFuzz can discover given concurrency bugs within just 26.8 runs (ranging from 3 to 81) and 13 seconds (ranging from 1 to 52) on average. Whereas, Snowboard discovers concurrency bugs within 89 runs (ranging from 8 to 229 runs) and 37.5 seconds (ranging from 2 to 139) on average, and KRACE discovers them, if successful, within 329.1 runs (ranging from 9 to 1296) and 107 seconds (ranging from 4 to 359) on average. Moreover, KRACE even suffers from discovering CVE-2019-6974 and 69e16d∅1d1de.

Fig. 10:Fig. 10: Elapsed time to exhaustively test given multi-threaded inputs after applying patches that fix concurrency bugs.

Exhaustively testing multi-threaded inputs. While Figure 9 shows that SegFuzz outperforms previous approaches when discovering concurrency bugs within given multi-threaded inputs, we wonder whether SegFuzz is also efficient when exhaustively testing multi-threaded inputs until interleaving segment coverage is saturated, but the testing does not cause concurrency bugs. These are common cases when a fuzzer tests inputs. To evaluate this, we re-apply all patches to fix concurrency bugs in Table II and measure how much time is required until saturating interleaving segment coverage of given multi-threaded inputs. In this experiment, Vul #8 is excluded because its patch simply disables the vulnerable subsystem.

Figure 10 shows the result. As shown in the figure, SegFuzz demonstrates elapsed time that is 7.1 times faster than Snowboard and 11.1 times faster than KRACE. While this result compares each approach when testing a single multi-threaded input, it is worth noting that the performance benefit of SegFuzz is cumulative across long-running fuzz testing. During fuzzing, a fuzzer needs to run a significant number of multi-threaded inputs. For example, during our evaluation, SegFuzz generates more than 60,000 inputs. As shown in Figure 10, SegFuzz can save 298 seconds for testing a single multi-threaded input on average compared to Snowboard, and this save keeps accumulated as a fuzzer keeps running. In this perspective, our evaluation demonstrates that SegFuzz has remarkable benefits over other approaches.

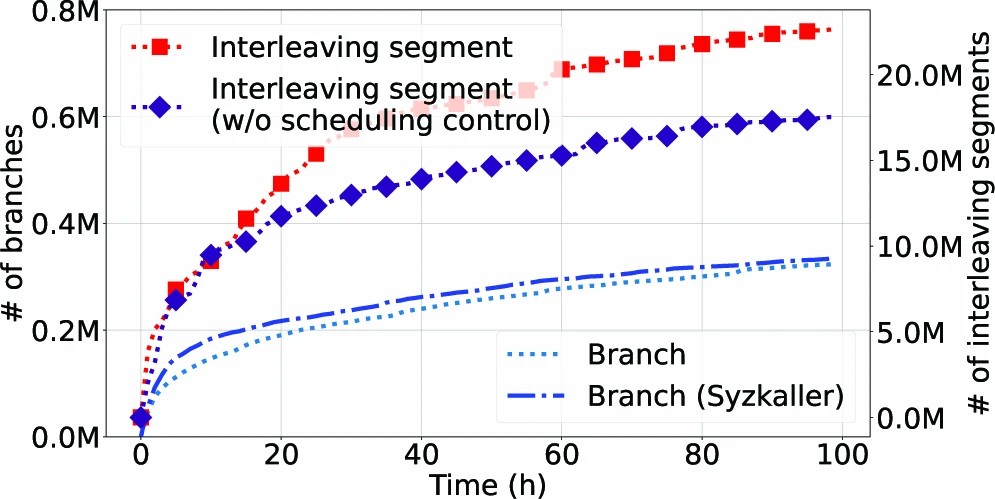

Fig. 11:Fig. 11: Coverage growth of SegFuzz.

In summary, these analysis results confirm that the mutation-based interleaving exploration exhibits superior performance by quickly navigating the search space even if interleaving segment coverage constructs more complex search space than alias coverage.

C. Performance characteristics of SegFuzz

This section provides performance characteristics of SegFuzz in coverage growth, fuzzing throughput, and per-input overhead.

Coverage growth. Since coverage metrics are the paramount performance metric of fuzzing, we measure the coverage growth for both code coverage (i.e. , the number of taken branches) and interleaving coverage (i.e. , the number of observed interleaving segments) during 100 hours of fuzzing. To see how much SegFuzz improves thread interleaving exploration, we disable the thread scheduling control in the multi-thread fuzzing phase of SegFuzz (i.e. , random thread schduling), and measure the interleaving coverage. The result is described in a line denoted by Interleaving segment w/o scheduling control in Figure 11. With the thread scheduling control disabled, SegFuzz finds 29.1% less interleaving segment coverage during the same period. To confirm that this improvement comes from actual performance benefits, we repeat the same experiment with 24 hours duration, and measure the p -value using Mann-Whitney U test ^{[3],[37],[67]}. The p -value is 0.03, which is lower than a conventional threshold of 0.05, indicating that the observed improvement is likely caused by a the performance benefit of SegFuzz rather than randomness. As a consequence, we can conclude that our design choices significantly improve in exploring thread interleavings.

In addition, since SegFuzz invests the computing power to repeatedly execute a multi-threaded input, we expect that SegFuzz might explore code coverage less than the baseline Syzkaller. To see the difference of the code coverage exploration in SegFuzz and Syzkaller, we measure code coverage of Syzkaller and illustrate it as a line denoted by Branch (Syzkaller) in Figure 11. As a result, SegFuzz finds 3.2% less code coverage compared to the baseline Syzkaller. This is a definitely downside of SegFuzz. However, considering the huge benefit in exploring thread interleavings, we still believe that this is marginal.

Fuzzing throughput. All SegFuzz’s mechanisms provide benefits in finding concurrency bugs with a cost of additional overheads and throughput degradation. To comprehend the trade-off, we measure the fuzzing throughput of SegFuzz and compare it with the Syzkaller’s throughput. In order to experiment in the same environment, we measure throughput with an empty set of seed. Because both Syzkaller and SegFuzz restart VMs after an hour of fuzzing, we measure throughput in an hour of execution in order to eliminate noises caused by, for example, VM rebooting or kernel crashes.

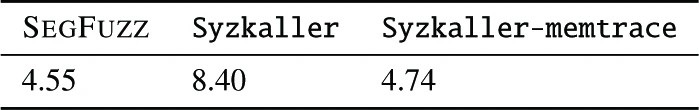

Table IV shows the result. SegFuzz shows the lower throughput than Syzkaller. In particular, the SegFuzz’s throughput is about 54% of the Syzkaller’s throughput. To further understand why the SegFuzz’s throughput is degraded, we additionally measure throughput of Syzkaller while tracing memory accesses (through instrumentation described in §V-B), but not making use of it. As shown in the Syzkaller-memtrace column in Table IV, it shows the throughput similar to that of SegFuzz; the Syzkaller-memtrace’s throughput is just 4.1% higher than the throughput of SegFuzz. These results indicate that the throughput of SegFuzz is mainly degraded by the heavy instrumentation to trace memory accesses. However, as KRACE ^[88] states, it can be understandable at the cost for the high input quality. In the fuzzer’s perspective, while tracking memory accesses has negative impacts on throughput, it is important to have a higher randomness for a fuzzer to execute more interesting inputs (i.e. , unexplored thread interleavings) to discover concurrency bugs. The effectiveness of high input quality is more pronounced in §VI-B2, showing SegFuzz can discover concurrency bugs very quickly.

Per-input overhead In SegFuzz, there are two types of overheads for executing a multi-thread input, i.e. , computational overheads and runtime overheads. Specifically, computation overheads are caused by tracking interleaving segment coverage after executing the input (§IV-B), and calculating scheduling points before executing the input (§IV-C). On the other hand, runtime overheads are caused by tracing memory accesses (§V-B) and controlling thread scheduling (§V-C). To closely examine these overheads, we measure the elapsed time for executing a single multi-thread input, and break down the elapsed time into each overhead. For this measurement, we run 10 thousands times and take an average.

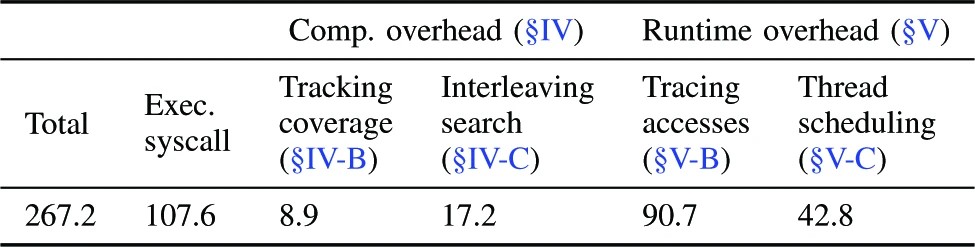

Table V shows the result. When executing a single input, the total elapsed time is 267.2ms. During the execution, the part that took the longest time is executing system calls; it takes 107.6ms. However, overheads incurred by SegFuzz is not negligible. Tracing memory accesses (§V-B) takes 90.7ms, and controlling thread scheduling (§V-C) takes 42.8ms. These two runtime overheads almost double the execution time, and are the main cause of degrading the throughput of fuzzing as shown in the above. In contrast, the total amount of time for computation is 26.1 (= 8.9 + 17.2)ms, and occupies approximately 9% of the total elapsed time. Accordingly, we can see that the computational overhead is relatively small.

VII.   Discusssion

Larger interleaving segment

While we restrict the size of each interleaving segment to four, a small fraction of concurrency bugs (e.g. , 8 out of 105 from the survey study ^[49]) are triggered with interleaving segments with size of larger than four. Thus, interleaving segment coverage falls short in tracking offending interleavings of this kind of concurrency bugs. Nonetheless, the mutation-based interleaving exploration is still able to trigger them via recomposing multiple interleaving segments. Since this kind of bugs also may severely affect the security of the kernel, we leave how to track their offending interleavings using interleaving coverage as future work.

Kernel background threads

Some system calls can spawn a kernel background thread (e.g. , kworkerd), and cause a concurrency bug with it. However, SegFuzz does not utilize interleaving segment coverage for kernel background threads. Thus, it may be inefficient for SegFuzz to find concurrency bugs in kernel background threads. Nonetheless, we emphasize that this limitation is not stemmed from our design choices but from the lack of a mechanism to trace basic blocks and memory accesses in kernel background threads. We expect that SegFuzz can be further improved if we devise the tracing mechanism, and leave this part as future work.

VIII.   Related Work

In this section, we discuss prior efforts to automatically discover concurrency bugs in the kernel.

Kernel fuzzing

To discover vulnerabilities in the kernel, fuzzing, specifically coverage-guided fuzzing ^{[20],[22],[33],[35],[36],[68],[70],[74]}–^{[76],[80],[89],} has proven to be practical and is widely used in industrial fields. Then, to further improve a kernel fuzzing, a number of attempts have been made to incorporate advanced techniques ^{[35],[68],[75],} or to expand the input space beyond syscalls ^{[36],[74],[89]}. Although they all achieve meaningful successes, they are limited in exploring thread interleavings, which raises a demand for discovering concurrency bugs in the kernel.

Controlled concurrency testing (CCT)

CCT ^{[1],[7],[9],[14],[29],[40],[62]}–^[64],[78] introduces an idea of overriding the kernel scheduler and methodically testing thread interleavings of a given input. To the best of our knowledge, concurrency fuzzing stems from CCT with an idea of merging the test case generation (i.e. , fuzzing) and the thread interleaving exploration (i.e. , CCT). Specifically, Razzer ^[28] states that it is inspired by SKI ^[14], a CCT technique aiming the kernel. SegFuzz is also affected by CCT techniques, and improves the concurrency bug-finding capability by adopting interleaving segment coverage and mutation-based interlaving exploration.

Data race detection

A large volume of work ^{[5],[13],[42],[50],[65],[66],[72],[79],[90],[91]} are proposed to detect data races, a subset of concurrency bugs ^[2],[43], while there are also non-data race concurrency bugs. For example, during our evaluation, SegFuzz can easily trigger non-data race concurrency bugs (e.g. , CVE-2019-6974, 69e16d01d1de) that cannot be detected using a data race detector, while data race detectors can detect non-memory corruption bugs such as semantic bugs (detailed in Appendix E). In addition, data race detectors are orthogonal to the design of SegFuzz, and thus, the SegFuzz’s concurrency-bug detection capability can be agumented if deployed together with a data race detector.

Double-fetch bugs

Several work ^{[4],[71],[81],[83],[84],[87]} are proposed to discover a certain type of concurrency bugs, called double-fetch bugs ^[82]. Double-fetch bugs manifest when one thread tries to fetch a single data twice while another thread modifies the data in the middle of fetches. While SegFuzz is able to identify other concurrency bugs that are not double-fetch bugs, SegFuzz may not be effective in detecting certain double-fetch bugs, such as ones that shared data resides in userspace memory (as described in Appendix F). Therefore, we believe SegFuzz and previous work to discover double-fetch bugs complement each other.

IX.   Conclusion

In this paper, we propose SegFuzz, a novel and effective kernel concurrency fuzzer. Its key improvements reside in 1) adopting informative interleaving coverage called interleaving segment coverage, and 2) mutation-based interleaving exploration which utilizes explored thread interleavings. As a result, SegFuzz has discovered 21 previously-undisclosed concurrency bugs, and a comparison study demonstrates that SegFuzz outperforms state-of-the-art concurrency fuzzers.
